FIELD-READY FIRE PROTECTION SHOP DRAWINGS. SEE THE WORK.

What we provide

Coordinated fire protection shop drawings — sprinkler and standpipe — plus the hydraulic calculations to back them.

We model the system, coordinate heads, mains, and branch lines against every other trade, and run the hydraulic calcs so the design holds up at submittal and in the field. One team for the drawings and the numbers.

Deliverables

What you get

Coordinated sprinkler/standpipe layout — mains, branch lines, head locations

Hydraulic calculations (NFPA-based) with the supporting nodes and demand

Sections and coordination at congested areas

Submittal- and fabrication-ready package on VDClab templates

Heads moved off diffusers, pipe routed between ducts and walls, auxiliary drains where routing traps water — all flagged on the drawings.

The offer

First area field-ready in 10 business days

First area in 10 business days; the rest scheduled in install order.

Quote in 1–2 business days.

LOD 400 fab-ready model.

1,000+ shop drawing projects · 800+ high-rise floors coordinated.

Led by a licensed P.E. in NJ, NY and FL.

If the drawings aren’t approved, we keep fixing them at no charge until they are — and if it’s still not right, you get your money back.

US-based project manager on every job · 50+ person production team · NJ-based MEP engineering firm, PE-licensed in NJ, NY, FL

Every job

What you get on every job

Material list per area

Hanger / insert / field-point layout

Trade-standards setup

Fab export check (SysQue / Revit)

Clash log + RFI tracker

Closeout as-built update

US-based PM + production lead

Quote

How a quote works

01 · Send your drawings.

02 · We review the scope.

03 · Scope, schedule & price in 1–2 business days.

Want to see it on your own job first? Get a free sample sheet →

How we work to spec

Standards & technical scope

NFPA 13 and NFPA 14

Sprinkler and standpipe layouts drawn to the edition the authority having jurisdiction enforces.

Hazard classification

The classification the design is based on, stated on the drawings.

Hydraulic calculations

Calculations that back the layout at submittal, run against the water supply data for the site.

K-factors and head layout

Head selection and spacing coordinated with ceiling, duct and structure.

Sample

What a fire protection set looks like

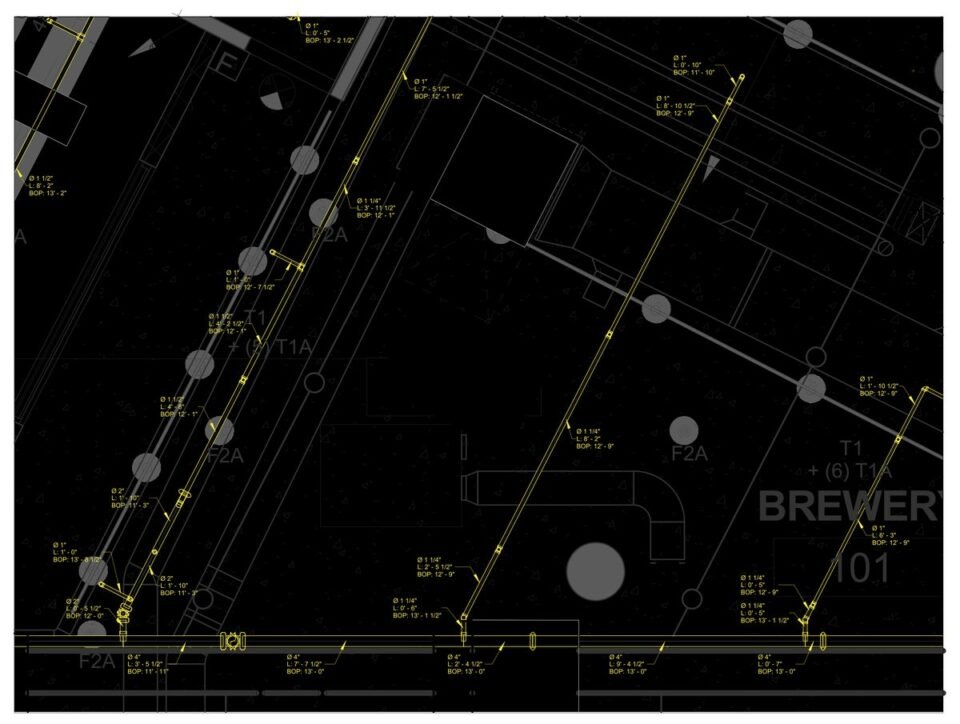

Brewery and commercial facility — Brooklyn, NY (wet and dry sprinkler systems, coordinated with HVAC, piping and tanks) — MEP shop drawing 1 of 4

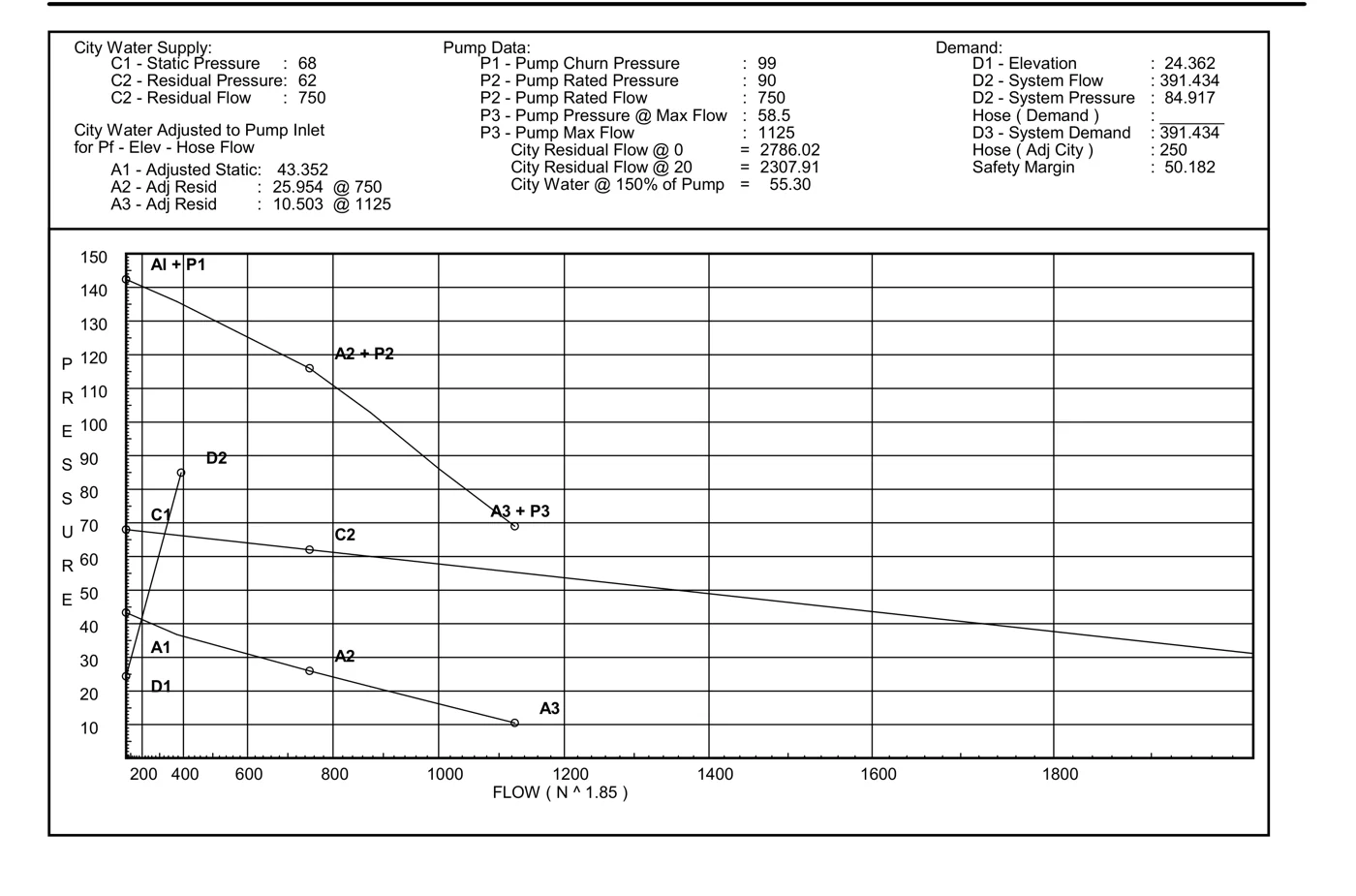

Fire sprinkler hydraulic calculation — water supply curve with pump and demand data

See our work

Fire Protection · BIM Coordination

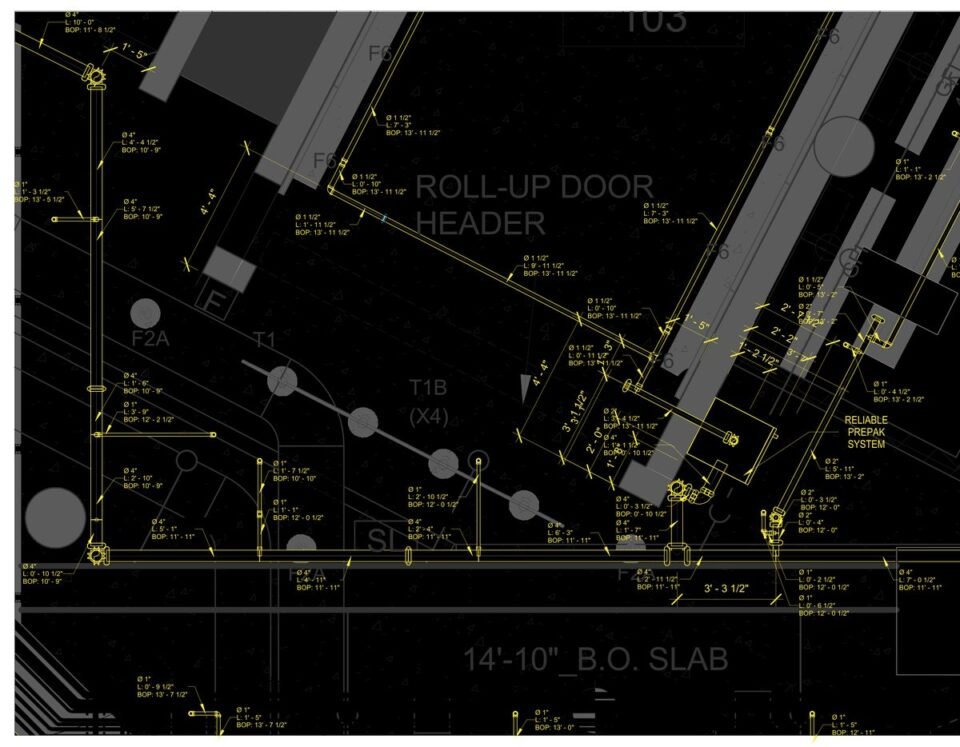

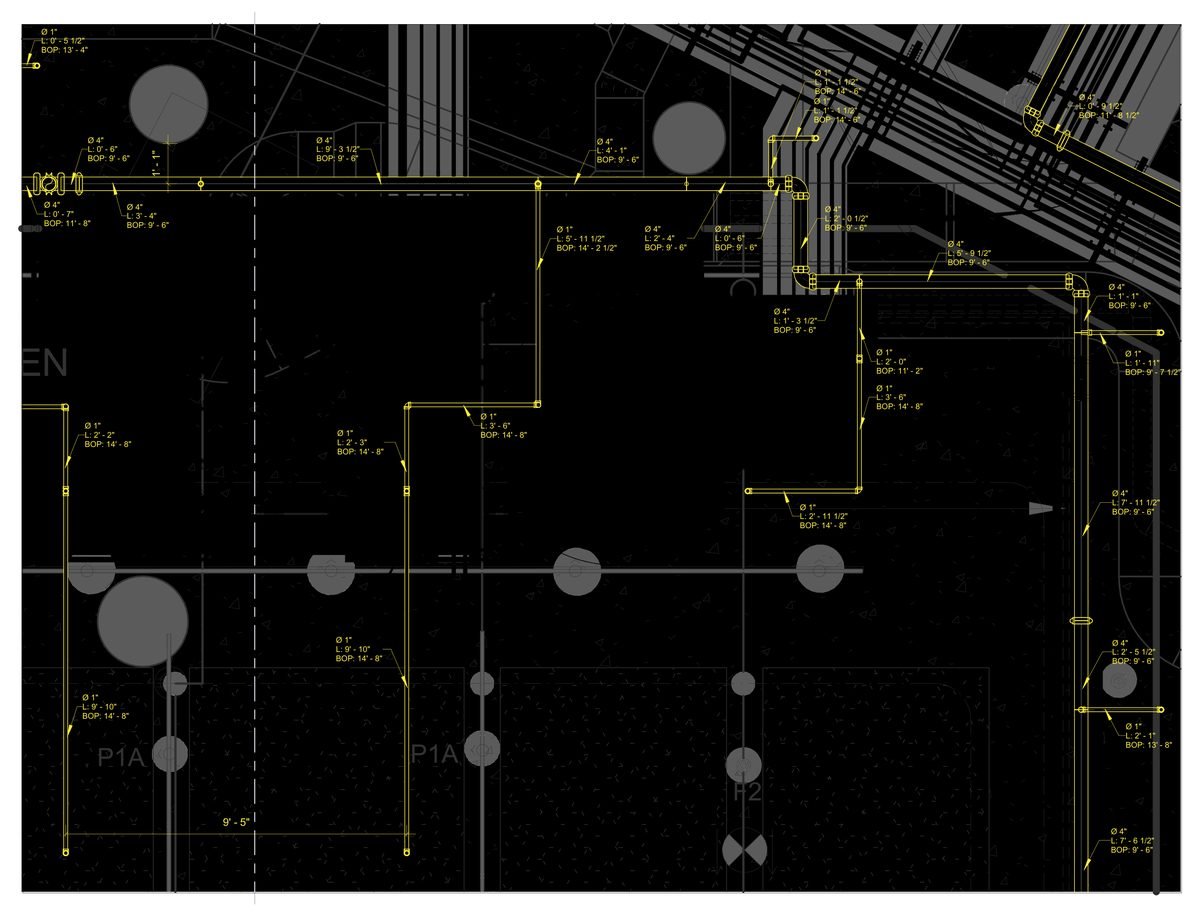

Brewery and commercial facility — Brooklyn, NY (wet and dry sprinkler systems, coordinated with HVAC, piping and tanks)
Similar project? Let's talk
Fire Protection

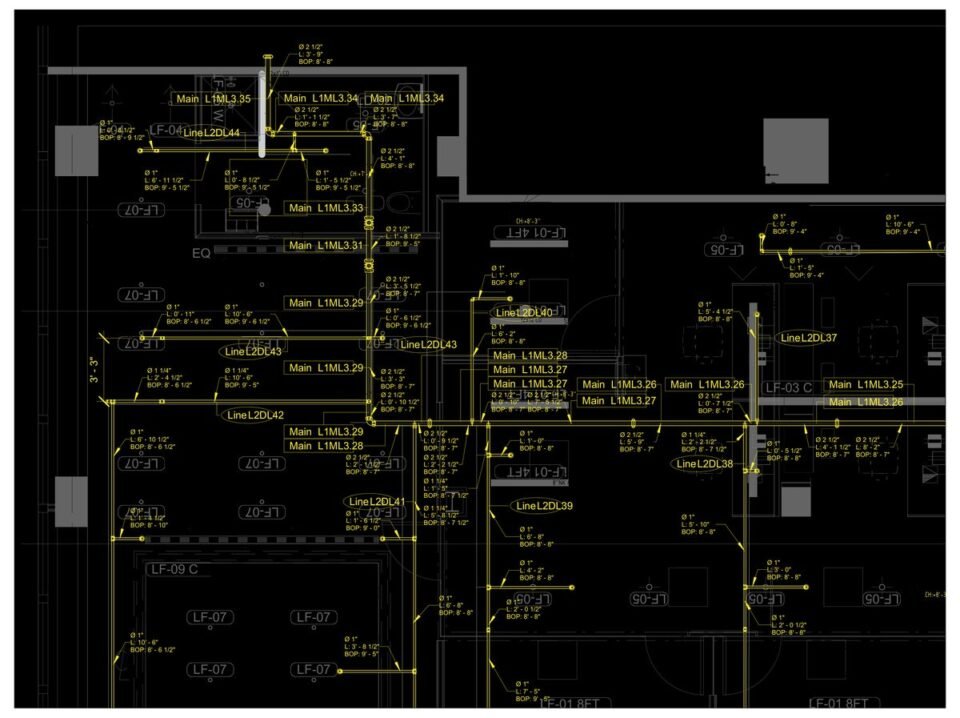

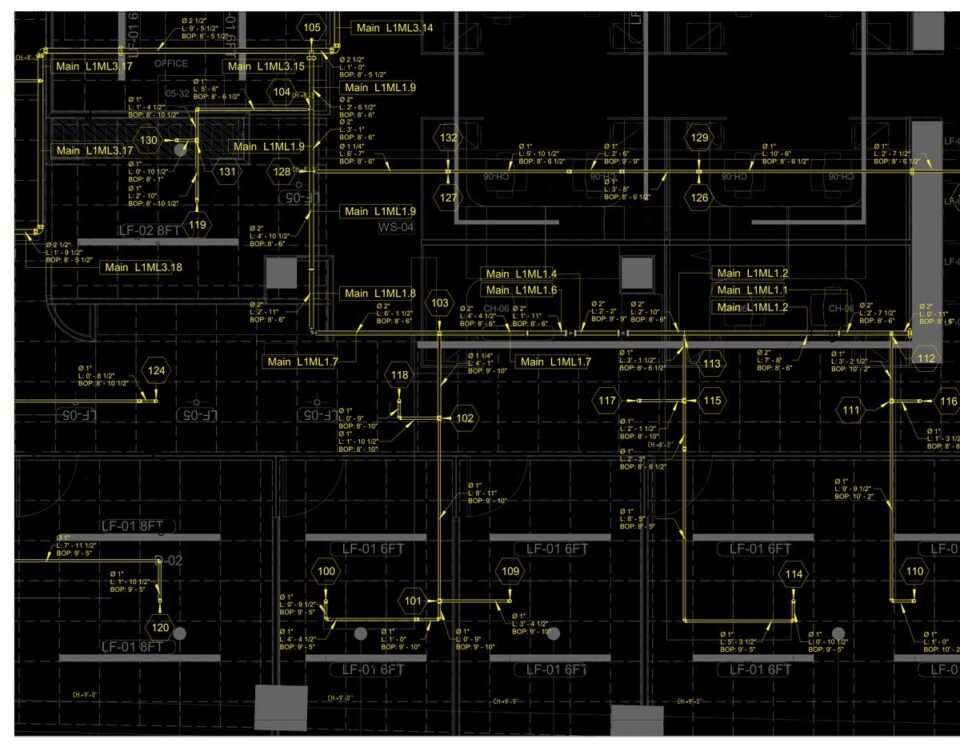

Office floor — Manhattan, NY (sprinkler renovation on an existing loop, hydraulic recalculation from a 15,000-gal tank)
Similar project? Let's talk
